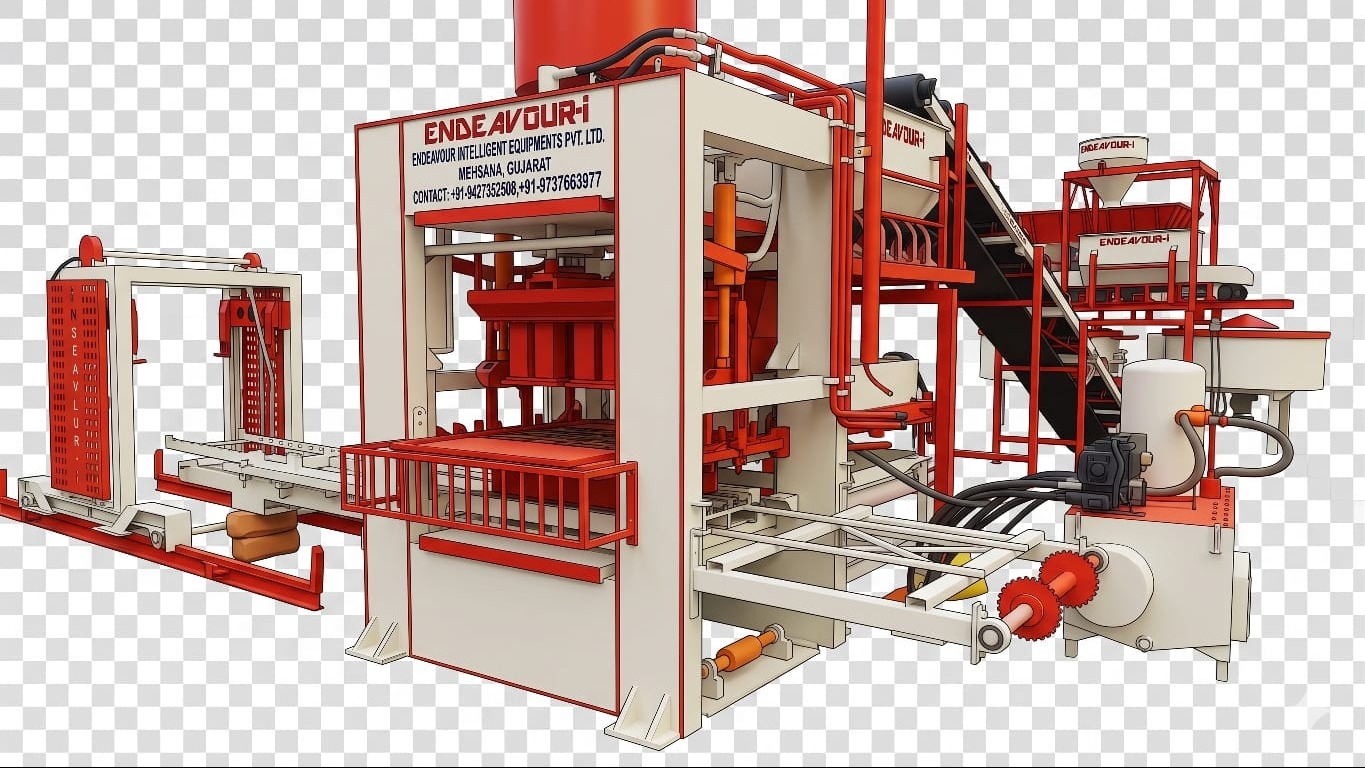

This Most Advanced, Heavy Duty & High Performance Cement Bricks & Concrete Blocks Making Machine
2026-04-19T07:38:55
This Most Advanced, Heavy Duty & Performance Based Bricks & Blocks Making Machine Is Designed & Developed By Endeavour intelligent Equipments Private Limited With Years Of Expertise, Best Workmanship & Solid Workforce With Sound Technical Background & Knowledge. Model: ENDEAVOUR-iF5000 Production Capacity: Bricks Size: 230 X 100 X 75 mm - 24 Bricks Plant per Stroke / 4200-4800 Bricks per Hour Solid Blocks Size: 400 X 100 X 200 mm - 10 Blocks per Stroke / 1000- 1300 Blocks Hour Solid Blocks Size: 400 X 150 X 200 mm - 8 Blocks per Stroke / 800- 1000 Blocks Hour Solid Blocks Size: 400 X 200 X 200 mm - 8 Blocks per Stroke / 800- 1000 Blocks Hour Major Units: Four Bin Feeder - To Store & Discharge Required Quantity Of Raw Materials Like Fly Ash, Sand, Stone Dust & Slag Powder To The Weighing Hopper Raw Materials Weighing Hopper - To Weigh The Raw Materials & Precisely Make A Batch As Per Required Quantity Set In The Control Panel With Use Of High Quality Load Cells & Specifically Designed Weighing - Batching Interface Raw Materials Transfer Conveyor - To Transfer The Batch Of Raw Materials To The Raw Materials Box Feeder Raw Materials Box Feeder - To Store The Batch Of Raw Materials & Feed It To The Either Pan Mixer As Per Command Received From Control Panel Cement Storage, Transfer & Weighing System - To Store The Cement, Transfer It To The Cement Weighing Hopper & Feeder It To The Raw Materials Box Feeder As Per Required Pan Mixer - 2 Nos Of Heavy Duty High Speed Pan Type Mixers Are Provided To Mix The Raw Materials Fast & Homogeneously Mixed Materials Transfer Conveyor - To Transfer The Mixed Raw Materials To The Mixed Materials Box Feeder Mixed Materials Box Feeder - To Store & Feed Mixed Materials To The Press Unit As Per Required Hydraulic High Pressure Type Brocks & Blocks Forming Machine - This Heavy Dusty Hydraulic Brocks & Blocks Making Press Unit Is Equipped With 2 Nos Of Hydraulic Cylinders & Prefill Valves To Create Massive 225 Tons Of Pressing On Mixed Materials To Form Strong Bricks & Blocks. This Hydraulic Brick & Blocks Forming Machine Is Also Fitted With Heavy Duty Oil Filled Box Type High Speed Vibration System To Insure Even Feeling & Compaction Of The Raw Materials To Form Best Quality Bricks & Blocks Automatic Pallet Stacker - To Lift The Pallets With Bricks Or Blocks Coming Out From The Machine On Rail & Stack Them From 2 To 7 Pallets One On One Hydraulic Power Pack - To Provide Required Flow & Pressure Of Hydraulic Oil To Operate The Machine. Specially Designed Hydraulic Circuit Works Seamlessly & Silently To Make The Machine Run Efficiently PLC Based Control Panel - To Operate & Control The Entire Bricks & Blocks Plant With Easy Interface. Specially Designed Operating Interface Enables Operator To Keep All The Things In Control Centrally. Detailed Reports Of Raw Materials Use, Machine Operation & Production Also May Be Avail By Customer. Contact Now Team ENDEAVOUR-i For Best Quality Fly Ash Bricks Making Machines, Automatic Concrete Blocks Making Machines, Automatic Concrete Paver Blocks Making Machines & Start Your Bricks & Blocks Making Business With Leader In Bricks & Blocks Making Machines Manufacturing Industry. Please Contact for More Details: ENDEAVOUR INTELLIGENT EQUIPMENTS Pvt. Ltd. Survey No: 1206, At: Motap, Ta: Becharaji, Dist: Mehsana Modhera Road, Mehsana-384410, Gujarat INDIA Contact: +91-8282825821 +91-8282825822 E Mail: endeavourintelligent@gmail.com
