Description
Product details

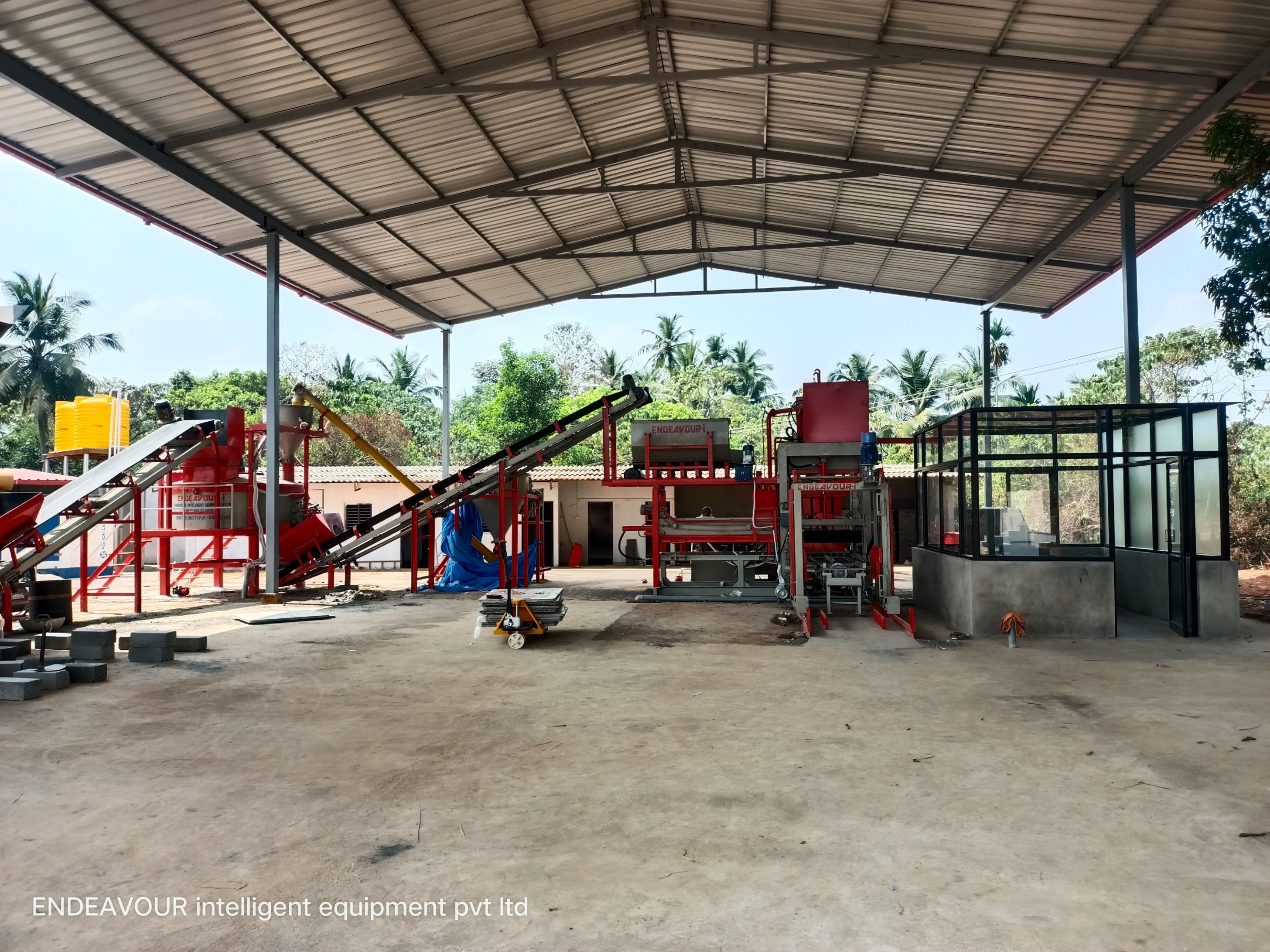

Fully Automatic Fly Ash Bricks & Solid Blocks Plant with Automatic Materials Batching & Feeding System & Automatic Pallet Stacker Installed in Karnataka Model: ENDEAVOUR-iF5000 Production Capacity: Bricks Size: 230 X 100 X 75 mm - 24 Bricks per Stroke / 4200-4800 Bricks per Hour Solid Blocks Size: 400 X 100 X 200 mm - 10 Blocks per Stroke / 1000- 1300 Blocks Hour Solid Blocks Size: 400 X 150 X 200 mm - 8 Blocks per Stroke / 800- 1000 Blocks Hour Solid Blocks Size: 400 X 200 X 200 mm - 8 Blocks per Stroke / 800- 1000 Blocks Hour Pressing Capacity: 250 Tons Max. Pan Mixer Capacity: 2000 Kgs per Batch Hydraulic Tank Capacity: 300 Ltrs Control Panel: User Friendly PLC Based Control Panel with Touch Screen Display Pallet Size: 830 X 1100 X 32 mm Connected Power: 136.00 HP / 102.00 KW / 3 Phase / 440 Volts / 50 Htz Major Units: Three Bin Feeder Weighing Hopper Raw Materials Transfer Conveyor Cement Feeding Hopper Cement Feeding Screw Conveyor Cement Weighing Hopper Pan Mixer Mixed Materials Transfer Conveyor Mixed Materials Box Feeder Heavy Duty Hydraulic Bricks Press - 225 Tonn Pressing Capacity Automatic Pallet Stacker Details & Specifications are subjected to change without Prior Notice.
